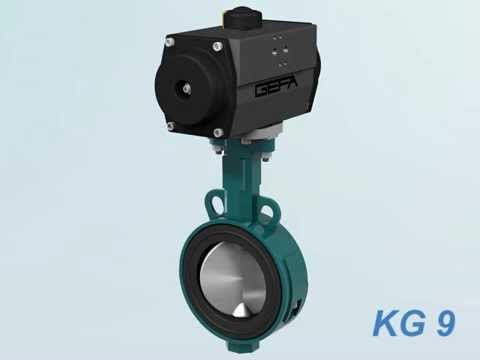

Wafer type KG 9
Technical data:
Wafer type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. Two-piece body, self-centring, one-piece
disc and stem, bubble-tight up to 16 bar, vacuum-tight.
Face-to-face dimension – DIN EN 558 line 20 API 609 table 1
Mounting flange – DIN EN ISO 5211
Test – DIN EN 12266 P10 P11 P12
Leakage rate A
DN 50 – DN 300
