The DDSR20 feeder is ideal for difficult flowing, sticky or floodable bulk
ingredients at low feed rates.
The feeder has the following main components: A stainless steel screw trough,
an agitator in the screw trough, a twin screw, a screw tube,
a 3 phase DC smart motor and an extension hopper with volumes of 5 dm³
(0.18 cuft), 10 dm³ (0.35 cuft) or 20 dm³ (0.71 cuft). The smart motor is
characterised by an extremely high adjustment range of 1:100.
The horizontal agitator works to consistently fill the screw and prevents
hopper bridging while providing mass flow. This results in optimal feeder
accuracy and control.

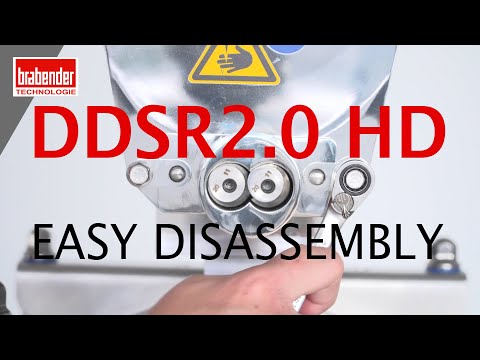

The DDSR20 is easily disassembled for wet or dry cleaning by releasing three
quick release clamps from the gear motor assembly. All service is from the
front or rear.
The gravimetric version includes the weighing systems MD2 und MD3
featuring a high-resolution digital load cell with serial data transmission as
well as MS2 and MS3, with strain gauge load cell with advanced filtering
technology.
The unit conforms to CE directives.
