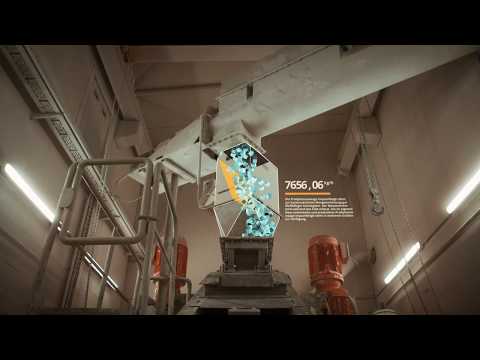

Impact scales are weighing systems for the continuous quantity measurement of easily flowing bulk materials in vertical process flows. MTS is the manufacturer of the ImpactWeigh impact scales, which have been developed by us and which are available in several sizes for flow rates from 5 up to 600 m³/h.
The compact variant IPW S, specially designed for small flow rates from 1 m³/h, extends the product portfolio.
The ImpactWeigh is characterised by the newly developed measuring unit, which guarantees a high level of measuring accuracy. The scale has a separate product and measuring chamber as well as large, easy-to-open inspection access flaps. Furthermore, the ImpactWeigh can be equipped with a static testing device for static adjustment of the scale.
Use:
– Recording in-process material flows
– Inventory control
– Optimization of truck and wagon pre-loading
Benefits:
1. Durability
– Design and robust workmanship of the ImpactWeigh ensures a long duration of life of the scale (no moving parts).
2. Protection for impact plate
– Special coatings (made of special plastics, ceramics and others) increase wear protection of the impact plate and its gliding properties.
3. Fast and easy installation
– Due to its simple structural design and compact dimensions, the ImpactWeigh can be easily integrated into the process route and is also easy to install.
4. Safety
– The separation of the product area and the measuring chamber offers special protection for the weighing mechanism and also enables use in Dust Ex Zones.
5. Good accessibility
– One particular advantage is the divided measuring chamber, which can also be opened during operation, which makes access to the weighing mechanism easier and enables use in confined space conditions. This saves time and effort during repair and service work.
6. Low maintenance effort
7. Good price-performance ratio
8. Good measuring accuracy – in particular in conjunction with the ModWeigh PPW control units.
