The Liebherr Litronic-WMS II water content meter is used to measure the moisture or water content of a wide range of water content of a wide variety of media and materials in refineries, on oil platforms, in pipelines, in tanks, in many applications in the chemical and petrochemical industry, sludge dewatering, drying, waste incineration and sewage treatment plants. Also in the agricultural sector up to the pharmaceutical industry and many other industries.
The wide range of applications extends from the most diverse emulsions to the finest powders and dusts and coarse-grained materials (max. grain size 32 mm) such as
– Oil, crude oil, diesel, biodiesel, hardening oil (upstream / downstream)
– Coolants
– Paints, lacquers, solvents
– Wax, resin
– Other emulsions, suspensions
– Water-product separation
– Dust, slag
– Fertiliser
– Washing powder, agent
– Sawdust
– Biomass
– Flour
– etc.
The stand-alone and precise measuring device for water content/moisture determination in the running process guarantees the highest quality and safety in EX-protected production environments, the further processing and refinement of very many emulsions and bulk materials.
The software enables fast and accurate calibration of the measured sections.

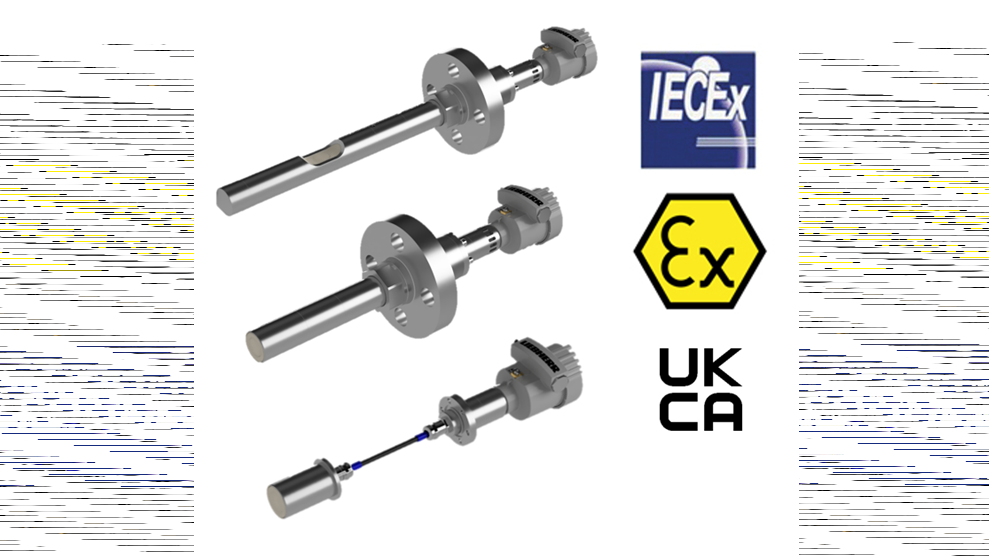

Liebherr offers sensors for the following device protection categories:
Certificates
ATEX / UKEX:
EU-type examination certificate number: EPS 21 ATEX 1 140 X / EPS 22 UKEX 1 159 X
DIN EN IEC 60079-0:2018, EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014
Gas EX-protection:
II 1/2 G Ex db/ia IIC T4 Ga/Gb
Dust EX-protection:
II 1/2 D Ex tb/ia IIIC T135°C Da/Db
IECEx:
Certificate number: IECEx EPS 21.0047X
IEC 60079-0:2017 Edition: 7.0, IEC 60079-1:2014-06 Edition: 7.0,
IEC 60079-11:2011 Edition: 6.0, IEC 60079-26:2014-10 Edition: 3.0,
IEC 60079-31:2013 Edition: 2
Gas EX-protection:
Ex db/ia IIC T4 Ga/Gb
Dust EX-protection:
Ex tb/ia IIIC T135°C Da/Db
